AWS ILTT-100i Inline Digital Torque Tester 10 - 100 Lb-in 1/4 in Drive ICI-100



Price: $ 1,550.00

AWS ILTT Inline Digital Torque Tester
Inline digital torque tester for quick tool verification
Ranges up to 5000 lb-ft
Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

12 Ranges Available up to 5000 lb-ft

The versatile ILTT Inline Digital Torque Tester converts any non-impacting torque tool into a complete torque measuring & analyzing system, simply connect the tester to the square drive, attach a socket and measure clockwise or counter-clockwise torque.

Suitable for use with any hand tool or non-impacting power tool including torque wrenches, breaker bars, nut-runners and more. Internal NiMH rechargeable batteries provide 8-10 hours continuous use.

The ILTT takes just seconds to change test parameters, and works in either one button or automatic modes of operation.Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking and Auto Clear.

Not for use with Impact Tools

line

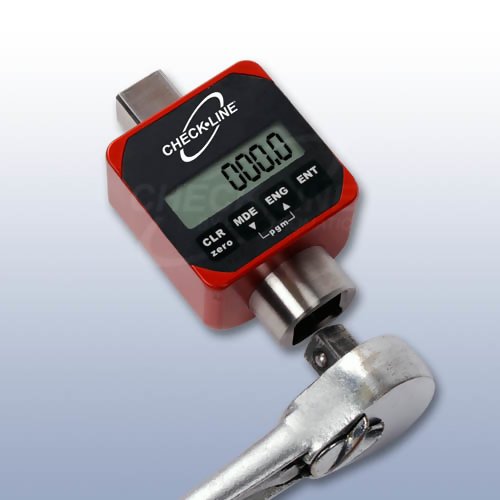

Photo Gallery
line

ABQ ABQ ABQ

line
Features
line

  • Bidirectional accuracy of 1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum Housing
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • Includes NIST-Traceable Calibration Certificate
  • Adjustable "auto-clear" for hands-free operation
  • RS-232 Serial Output included for downloading data to PC's

line
Torque Ranges
line

ModelRangeDriveSize
ILTT-100i10 - 100 Lb-in1/4"
ILTT-250i25 - 250 Lb-in3/8"
ILTT-500i50 - 500 LB-in3/8"
ILTT-100F10 - 100 Lb-ft1/2"
ILTT-150F15 - 150 Lb-ft1/2"
ILTT-250F25 - 250 Lb-ft1/2"
ILTT-600F60 - 600 Lb-ft3/4"
ILTT-750F75 - 750 Lb-ft3/4"
ILTT-1000F100 - 1000 Lb-ft1"
ILTT-2000F200 - 2000 Lb-ft1"
ILTT-3000F300 - 3000 Lb-ft1 1/2"
ILTT-5000F500 - 5000 Lb-ft1 1/2"

Alternative Unit Calculator- recasts values in above table(units in RED can be selected on gauge. Other units for reference only)

line
Specifications
line

Calibrated Range10-100% Full Scale, bi-directional
Accuracy1% of indicated (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memorydata storage of up to 999 readings
Data OutputRS-232
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, 9V Charger (included)
WeightAproximately 3lbs depending on transducer
Operating Temp32 - 120 F (0-50 C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data


line

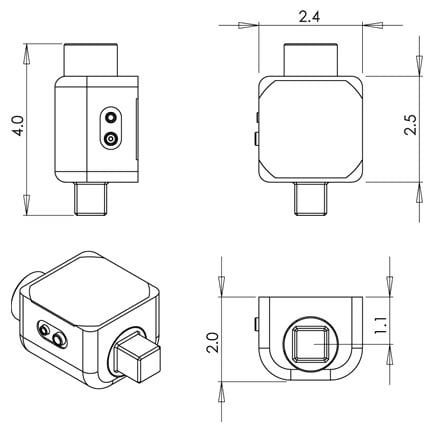

Dimensions
line

dimensions

line
Related Products
line

TT-QC
Torque Tester

  • Bidirectional accuracy of 1% of indicated reading
related

line
Downloads
line

ILTT Inline Digital Torque Tester - Dimensional MTM 2
ILTT Inline Digital Torque Tester - Dimensional MTM 4
