DIS-IP200 Digital Torque Tester with Flanged Remote Sensor, Capacity 1740 lbf-in/ 145 lbf-ft/ 20 kgf-cm/ 200 N-m, 220V



Price: $ 1,205.00

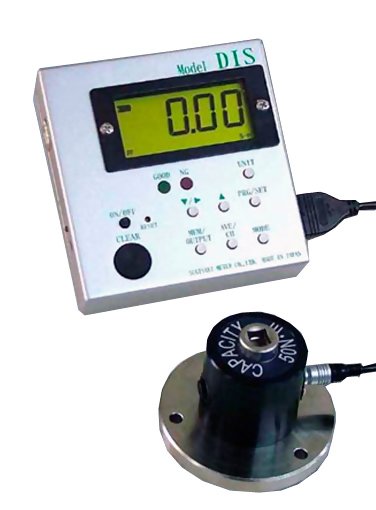

DIS-IP Digital Torque Tester with Remote Sensor
Digital Torque Tester with Remote Sensor

4 Ranges up to 2.0~362.0 lbf-ft / 0.20~50.00 kgf-m /2.0~500.0 N-m
800 data memory for recall or for SPC download

Digital Torque Tester with flanged remote sensor calibrates torque tools up to 362 lbf-ft. It has an accuracy of .5% F.S., 1 LSD. Select Peak, Real Time or Peak Down measurement modes. Programmable high/low setpoints enable GO/NO GO testing; green lights between high and low setpoints, and red for under low and over high setpoint.

Use the 800 internal memory for peak data recall or USB download for analysis by Imada data acquisition software SW-1SV-USB.

Calibrate your own torque wrenches and electric drivers and and save down time. Do not use with power drivers or impact tools (Ask for DI-1M impact wrench torque tester).

line
Features
line

  • Heavy duty metal construction
  • lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m (see table below)
  • 800 data memory for recall or for SPC download
  • USB output for SPC capability
  • Peak, Real Time and Peak Down measuring modes (selectable)
  • Accuracy: 0.5% F.S. 1 LSD (32 to 100F)
  • Both clockwise and counterclockwise operation
  • AC adapter/charger included
  • Runs on internal NiCad batteries (8 hour use)
  • Programmable High/Low setpoints with GO/NO GO LED indicators and audible beep

line
Torque Ranges
line

ModelCapacityDrive
DIS-IP5 0.20 - 44.00 lbf-in
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-cm
0.020 - 5 N-m
1/4"
DIS-IP50 2.0 - 440.0 lbf-in
2.0 - 500.0 kgf-cm
20 - 5000 N-cm
0.20 - 50.00 N-m
3/8"
DIS-IP200 20 - 1740 lbf-in
2.0 - 145 lbf-ft
0.20 - 20.00 kgf-cm
2.0 - 200.0 N-m
1/2"
DIS-IP500 20 - 4400 lbf-in
2.0 - 362 lbf-ft
0.20 - 50.00 kgf-cm
2.0 - 500.0 N-m
3/4"
