Imada HTGS-4 Digital Torque Gauge, 70.00 ozf-in



Price: $ 1,685.00

Imada HTGS Digital Torque Gauge
Imada HTGS Digital Torque Gauge
4 Ranges up to 85.00 lbf-in
1,000 data memory for recall or download

The Imada HTGS Digital Torque Gauge features a remote torque sensor with a Jacobs chuck. The chuck is designed to grip a test sample, a screwdriver bit or a wide range of other fixtures. The Imada HTGS measures torque in both clockwise and counter-clockwise directions. The display shows measurements in lbf-in, ozf-in, kgf-cm, or N-cm.

The Imada HTGS torque tester features easy to use menus to make programming simple. Select units, reverse the display, set high/low setpoints, and set all other functions using plain language menus. The bright electro luminescent display shows torque value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, angle value (optional HTGA model), etc. The HTGS also has a set of 3 indicator lights. The orange, green and red indicator lights can be used in conjunction with the programmable high/low setpoints for pass/fail testing. Color-coded LED indicators alert the user to Go/NoGo conditions. Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate.

The all new HTGS gauge includes the USB device driver and ZT Logger data acquisition software for windows. ZT Logger can download data from the gauge memory or capture a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

Optional Force Recorder Data Acquisition Software is designed to capture up to 2,000 data per second. No other gauges come close to this speed! Other functions include, gauge programming, graph overlay feature, automatic statistics generation


line
Kit Contents
line

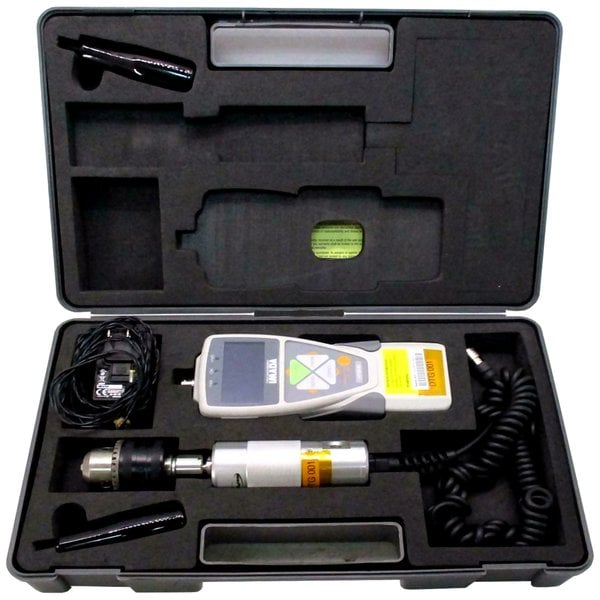

  • Imada HTGS Digital Torque Gauge
  • Display
  • Sensing chuck
  • ZT Logger data acquisition software
  • USB cable
  • Allen wrench
  • AC adapter/charger
  • "85" ranges also include handle
  • Calibration cert traceable to NIST
  • Carrying case


line
Features
line

  • Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No Go testing
  • USB (virtual COM port), RS-232C, Digimatic and Analog outputs
  • lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm units are selectable
  • 1,000 data memory for recall or download
  • Internal Ni-MH batteries or AC adapter
  • Overload alarm and output signal
  • Ergonomic design, non-slip grips, heavy duty metal construction
  • Sample and transmit 2,000 data/sec using optional Force Recorder software
  • Overload capacity 200% of F.S.
  • Real time and peak mode (selectable)


line
Specifications
line

Accuracy0.5% 1 LSD
Selectable Unitslbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm
Overload Capacity200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
PowerRechargeable Ni-MH battery pack or AC adapter
Battery IndicatorIndicates three charge states high, med and low
MemoryNon-volative, recall up to 1,000 data
SetpointsProgrammable high/low setpoints w/ color-coded LEDs & output signal
OutputsUSB (virtual COM port), RS-232C, Digimatic and 2 VDC analog output
Operating Temperature32 to 100F (0 to 40C)


line
Force Ranges
line

ModelCapacityResolutionChuck Size
HTGS-470.00 ozf-in
5.000 kgf-cm
50.00 N-cm
0.01 ozf-in
0.001 kgf-cm
0.01 N-cm
4mm
HTGS-1515.00 lbf-in
20.00 kgf-cm
200.0 N-cm
0.01 lbf-in
0.01 kgf-cm
0.1 N-cm
6.5 mm
HTGS-15L15.00 lbf-in
20.00 kgf-cm
200.0 N-cm
0.01 lbf-in
0.01 kgf-cm
0.1 N-cm
13 mm
HTGS-4040.00 lbf-in
50.00 kgf-cm
500.0 N-cm
0.01 lbf-in
0.01 kgf-cm
0.1 N-cm
6.5 mm
HTGS-40L40.00 lbf-in
50.00 kgf-cm
500.0 N-cm
0.01 lbf-in
0.01 kgf-cm
0.1 N-cm
13 mm
HTGS-8585.0 lbf-in
100.0 kgf-cm
1000 N-cm
0.1 lbf-in
0.1 kgf-cm
1 N-cm
6.5 mm
HTGS-85L85.0 lbf-in
100.0 kgf-cm
1000 N-cm
0.1 lbf-in
0.1 kgf-cm
1 N-cm
13 mm


line
Chuck Sizes & Min / Max Sample Diameters
line

ModelStandardOptional (*L)
HTGS-46.5mm / 0.260"NA
HTGS-156.5mm / 0.260"13mm / 0.512"
HTGS-406.5mm / 0.260"13mm / 0.512"
HTGS-856.5mm / 0.260"13mm / 0.512"

*For 13mm Chuck add "-L" to part # ie: HTG2-15L

Chuck SizeMin SampleMax Sample
6.5mm / 0.260"0.5mm / 0.020"6.5mm / 0.260"
13mm / 0.512"0.7mm / 0.028"13mm / 0.512"


line
Downloads
line

Imada HTG-Series Digital Torque Gauge - Data Sheet

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Imada HTGS-4 Digital Torque Gauge, 70.00 ozf-in $1,685.00
Accessories Price
ISO-17025 ISO/IEC 17025 Certificate and Test Data $160.00
TBK33 33 Piece 1/4" Hex Bit Set with drive extension, 6 Torx, 5 Hex bits, 8 Phillips, 8 Pozidrive, 5 slotted bits $15.00
ZT-RL Force Recorder Software - Light Edition $260.00
ZT-RS Force Recorder Software - Standard Edition $360.00
ZT-RP Force Recorder Software - ProEdition $580.00
CB-108 Analog Cable $75.00
CB-208 RS-232 Cable $75.00
CB-308 Digimatic Cable $75.00
ADW-6010 Spare / Replacement Power Adapter for ZT / HTGS / DTXS $45.00
