AWS TT-QCMF-600 Torque Wrench Tester, 60 - 600 Lb. Ft., 3/4" Sq. Drive



Price: $ 2,195.00

AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Wrench Tester
High Precision Torque Tester for tool verification and calibration

AWS TT-QCM / AWS-QCM or Aimco Auditor Torque Wrench Tester

Accuracy: 0.5% of reading (optional 0.25% available)

Capacities from 10 in-oz to 2000 lb-ft

Displays torque in 8 measuring units: oz-in, lb-in, lb-ft, N-m, cN-m, kgf-cm, gf-cm, kgf-m

The AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Tester is designed for verification and calibration of a wide range of torque wrenches and torque tools. It's bench top design is perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.

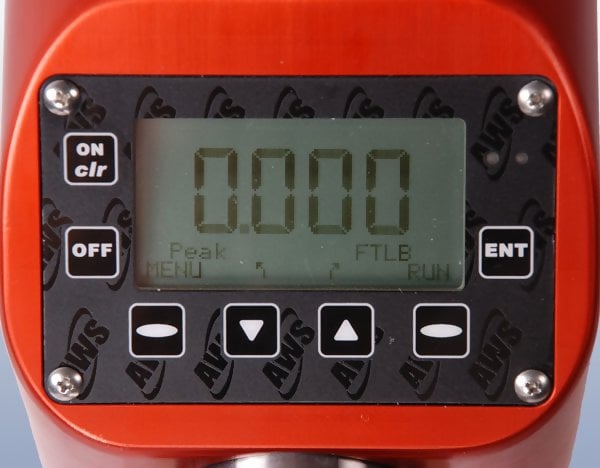

A large LCD display with easy to navigate menu allows for quick setup. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, it can be switched by the operator after purchase.


line
Kit Contents
line

  • AWS TT-QCM / AWS-QCM / Aimco Auditor Torque Wrench Tester
  • AC adapter/Charger
  • Operating Manual
  • NIST Traceable calibration certificate with data
  • Warranty 1 (one) Year

* Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models


line
Photo Gallery
line

ABQ ABQ ABQ


line
Features
line

  • Bidirectional accuracy of 0.5% of indicated reading, 0.25% Optional
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Transducer can be mounted in a vertical or horizontal orientation and switched by the user at a later time if needed
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • 3 modes of operation: Track, Peak and 1st Peak
  • Includes NIST-Traceable Calibration Certificate


line
Specifications
line

Calibrated Range 10-100% Full Scale, bi-directional
Accuracy 0.5% of indicated reading from 10-100% of capacity (Bidirectional)
0.25% Optional
Resolution 4 Active Digits
Overload Protection 200% Full Scale bi-directional
Operating Modes Track, Peak, 1st Peak
Filtering Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data Output RS-232
Alarm Limits Panel Mounted LED for Visual Alarm Limits
Power Internal NiMH battery, AC Adapter / Charger (included)
Weight Aproximately 3lbs depending on transducer
Operating Temp 32 - 120 F (0-50 C)
Warranty 1 Year
Calibration Certificate Includes NIST Traceable calibration certificate with data
Standard Accesories Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories Joint Simulators for 1/2", 3/4" & 1" Transducers


line
Torque Ranges
line

Model Range DriveSize
TT-QCMIO-10* 1 - 10 Oz-in 1/4"
TT-QCMIO-50* 5 - 50 Oz-in 1/4"
TT-QCMIO-100 10 - 100 Oz-in 1/4"
TT-QCMI-10 1.0 - 10 Lb-in 1/4"
TT-QCMIO-200 20 - 200 Oz-in 1/4"
TT-QCMI-25 2.5 - 25 Lb-in 1/4"
TT-QCMI-50 5.0 - 50 Lb-in 1/4"
TT-QCMI-100 10 - 100 Lb-in 1/4"
TT-QCMI-150 15 - 150 Lb-in 1/4"
TT-QCMI-250 25 - 250 Lb-in 3/8"
TT-QCMI-500 50 - 500 Lb-in 3/8"
TT-QCMI-750 75 - 750 Lb-in 3/8"
TT-QCMI-1000 100 - 1000 Lb-in 3/8"
TT-QCMF-100 10 - 100 Lb-ft 1/2"
TT-QCMF-150 15 - 150 Lb-ft 1/2"
TT-QCMF-250 25 - 250 Lb-ft 1/2"
TT-QCMF-500 50 - 500 Lb-ft 3/4"
TT-QCMF-600 60 - 600 Lb-ft 3/4"
TT-QCMF-750 75 - 750 Lb-ft 3/4"
TT-QCMF-1000 100 - 1000 Lb-ft 1"
TT-QCMF-2000 200 - 2000 Lb-ft 1"

*For 10 & 50 in-oz accuracy is +/-1% from 10-100% of capacity
