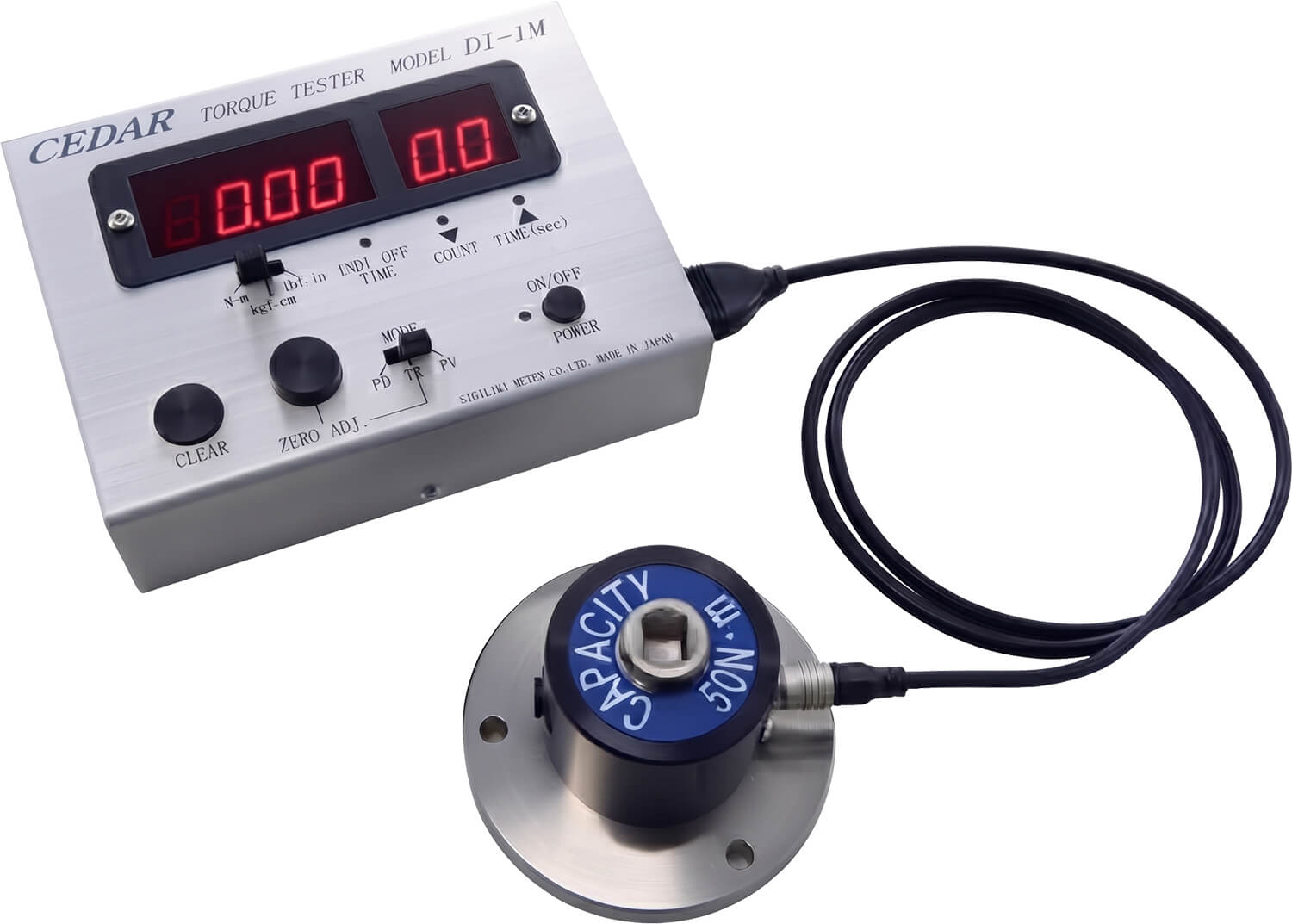

Cedar DI-1M-50 Impact Torque Tester, 440 lbf-in/ 5000 N-cm, Requires Spring Adapter (Sold Separately)

Imada Cedar DI-1M - DI-2M Digital Torque Tester for Air Tools & Impact Wrenches

---

Air Tool & Impact Wrench Digital Torque Tester

---

Requires Spring Adapter - Sold Separately

---

4 Ranges up to 362.0 lb-ft / 50.00 kg-m / 500.0 N-m.

---

For calibrating hand screwdrivers, wrenches, and power tools.

---

Selectable Units: lb-ft, kg-m and N-m

---

The Imada Cedar DI-1M - DI-2M Digital Torque Tester for Air Tool are designed for calibration verification of pneumatic, electric, impact, pulse, and continuous drive torque tools. A large display indicates the peak torque value in either direction and the number of blows. Data can be downloaded to your computer via the USB port for analysis with the optional SW-1SV-USB data acquisition software. DI-1M uses switches to control test settings. DI-2M features easy-to-use menu screens and buttons to program the unit.

The DI-2M offers Impact Sensitivity Adjustment (offset), which allows the user to control torque output to more closely match the manufacturers specifications. High/Low setpoints for both torque and blows give visible and audible alerts to enable Go/No Go testing. A Peak Down Minimum setting ensures that continuous drive tools wont lock up the unit before breakaway torque is reached.

Kit Contents

---

Features

---

• Includes NIST-Traceable Calibration Certificate
• Easy to read LED panel displays reference torque value in lbf-ft, kgf-m and N-m (selectable); and number of blows for selected period (0.1 - 9.9 sec)
• Accuracy: 0.5% F.S. 1 LSD ( 32 to 100F)
• USB data output (peak or continuous data)
• Peak, Real Time and Peak Down measuring modes (selectable)
• Ergonomic light weight, torque tester with heavy duty metal construction
• Runs on internal NiCad batteries (8 hour use)
• ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
• 2 Year Warranty
• Impact Sensitivity Adjustment to closely match manufacturers specifications
• High/Low setpoints for both torque and blows enable Go/No Go testing
• Peak Down Minimum helps prevent manual torque wrenches locking up before breakaway is reached

Force Ranges

---

Model	Capacity	Drive Size
DI-2M-50	3.0 - 440.0 lb-in 0.30 - 50.00 N-m 3.0 - 500.0 kg-cm 30 - 5000 N-cm	3/8" Sq. Dr.
DI-2M-200	3.0 - 145.0 lb-ft 0.30 - 20.00 kg-m 3.0 - 200.0 N-m	1/2" Sq. Dr.
DI-2M-500	3.0 - 362.0 lb-ft 0.30 - 50.00 kg-m 3.0 - 500.0 N-m	3/4" Sq. Dr.

The readings displayed may vary from the actual torque that a tool applies to a thread joint, because testers cannot always duplicate actual joint characteristics. Verify the torque output of the tool being used on the actual assembly, when critical assemblies are involved.

Optional Spring Adapters

---

Optional Spring Adapters Simulate Joint characteristics for more accurate measuring.

SJ Spring Adapter Specifications
Model	Capacity	Drive	Screw	for Model
SJ-200	200 lbf-in / 22 Nm	3/8"	3/8-16	DI-2M-50
SJ-300	300 lbf-in / 34 Nm	3/8"	1/2-13	DI-2M-50
SJ-500	500 lbf-in / 56 Nm	1/2"	1/2-13	DI-2M-200
SJ-1500	125 lbf-ft / 170 Nm	1/2"	3/4-10	DI-2M-200
SJ-2000	167 lbf-ft / 226 Nm	3/4"	3/4-10	DI-2M-500
