Mark-10 AC1073 Inline Adapters for Force Gauges

• Permit inline pull testing with a force gauge 500 lbF (2.5 kN) capacity
• Inline Adapters for Force Gauges

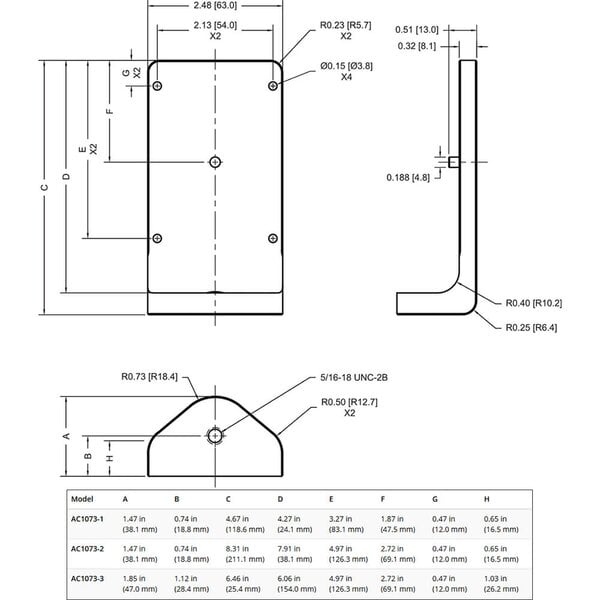

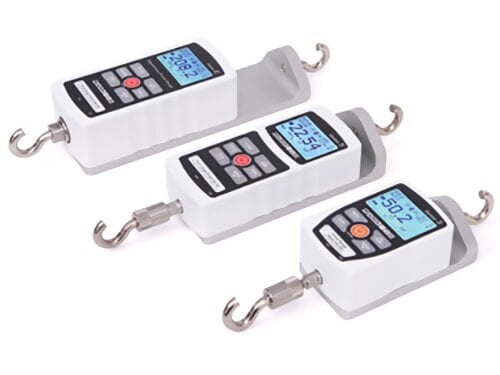

These adapters allow a force gauge to be used in inline pull testing or weighing applications. A 5/16-18 threaded hole at each end is axially aligned with the load cell shaft in the force gauge, for mounting hooks or other attachments. Three adapters are offered, accommodating Mark-10 force gauges with capacities up to 500 lbF (2.5 kN).
