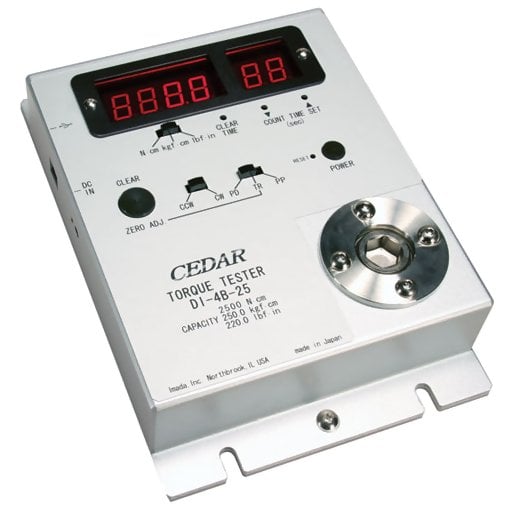

Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches, 220 lbf-in/ 250 Kgf-cm



Price: $ 1,950.00

Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches
Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches
Capacity:
0.1 - 220.0 lbf-in
0.1 - 250.0 kgf-cm
0.01 - 25.00 N-m

Selectable Units: lb-ft, kg-m and N-m

The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches are perfectly suited for on-the-spot calibration of air tools and impact drivers, but will calibrate any type of manual wrenches as well.

The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches gives a digital readout of peak value in either direction and also indicate the number of blows for a selected time period.

This torque tester has an accuracy of 0.5%, 1 LSD, Peak, Real Time and Peak Down modes, and provides peak data for SPC (statistical process control) via the RS232 port.

Joint simulator thread size 5/16-18 included (10-24, 3/8-16 and M5, M6 and M10 threads sold separately.

Calibrate your own air tools and impact drivers and save down time.


line

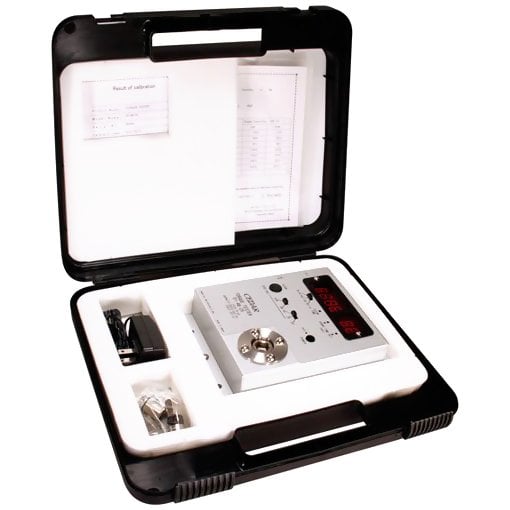

Kit Contents
line

  • Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches

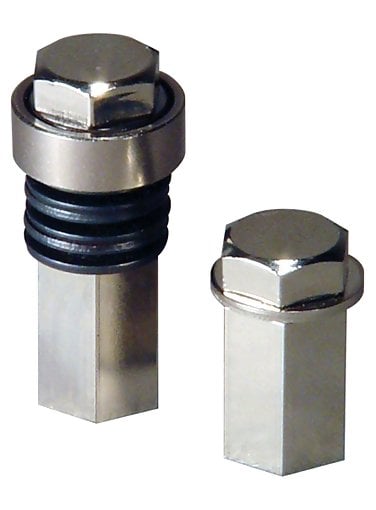

  • Joint simulators
  • AC adapter/charger
  • Operating Instructions
  • Calibration Certificate


line
Features
line

  • Heavy duty metal construction
  • Displays number of blows for selected period (0.1 - 9.9 sec)
  • Selectable Units: lb-ft, kg-m and N-m
  • Both clockwise and counterclockwise operation

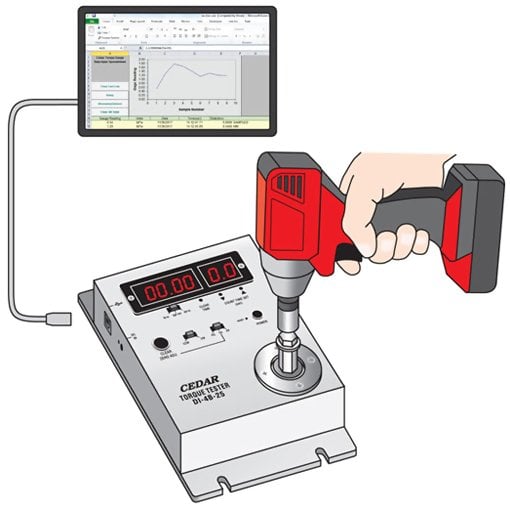

  • RS-232 peak data output for SPC capability
  • Peak, Real Time and Peak Down measuring mode (selectable)
  • Runs on internal NiCad batteries (8 hour use)
  • Soft joint, hard joint and AC adapter/charger included
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty


line
Specifications
line

Capacity0.1~220.0 lbf-in
0.1~250.0 kgf-cm
0.01~25.00 N-m
Accuracy 0.5% F.S., 1 LSD


line

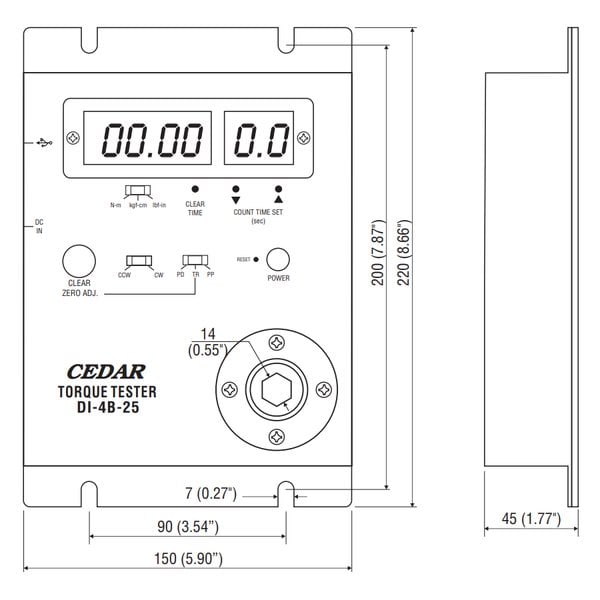

Dimensions
line


line
Related Products
line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

  • Full SPC and graphing capabilities
  • Automates your data collection
  • Provides a running log of all measurements along with a chart of the data as well as statistical information
