Mountz LTT-10i Torque and Angle Analyzer, 1-10 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068400



Price: $ 3,175.00

Mountz LTT Torque and Angle Analyzer
Recommended for all hand screwdrivers, wrenches or power tools.
8 Ranges available up to 250 Lb-ft.


The Mountz LTT Torque and Angle Analyzer is the next generation of torque analyzer. It offers EZ-Plug & Play with instant auto recognition with transducers. The Mountz LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation.

The LTT includes three PC Windows based software programs:

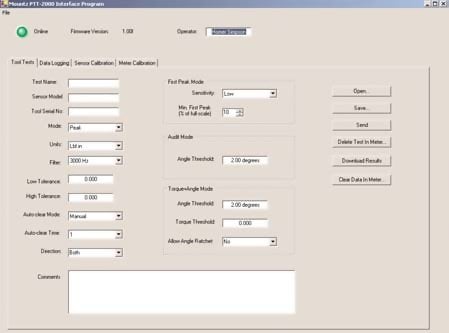

Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests.
Torque Meter Bootloader - for updating the LTT operating systems.
Statistics Calculator - for SPC, CP & CPK calculations.


line
Features
line

  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
    Accuracy +/- 1% of reading from 10% to 20% of full scale.
  • Provides EZ-Plug & Play. Features an instant auto-recognition system of the transducer connected to the LTT.
  • Built-in Tool Tests operation.
  • Stores a total of 2500 data points.
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
  • Recommended for all hand screwdrivers, wrenches or power tools.
  • "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
  • Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).


line
Force Ranges
line

ModelCapacityDrive Size
LTT-10i1-10 lbf-in
11.3 - 113 cN-m
1.2 - 11.5 kgf-cm
1/4" F/Sq
LTT-25i2.5-25 lbf-in
28.25 - 282.5 cN-m
2.9 - 28.8 kgf-cm
1/4" F/Sq
LTT-50i5 - 50 lbf-in
56.5 - 565 cN-m
5.8 - 57.6 kgf-cm
1/4" F/Sq
LTT-100i10 - 100 lbf-in
113 - 1130 cN-m
11.5 - 115 kgf-cm
1/4" F/Sq
LTT-250i25 - 250 lbf-in
282.5 - 2825 cN-m
28.8 - 288 kgf-cm
1/4" F/Sq
LTT-50F5 - 50 lbf-ft
6.8 - 67.8 N-m
0.7 - 6.9 kgf-m
3/8" F/Sq
LTT-100F10 - 100 lbf-ft
13.56 - 135.6 N-m
1.4 - 13.8 kgf-m
1/2" F/Sq
LTT-250F25 - 250 lbf-ft
33.9 - 339 N-m
3.5 - 34.5 kgf-m
1/2" F/Sq


line
Tool Tests & Graphing
line

The LTT allows you to set up and create tool tests and save the readings so you can export the data to a PC for documentation. It's the ideal solution for organizing and storing test data for ISO and SPC documentation.

The ability to graph a dynamic rundown allows joint analysis. Great resource to evaluate create or confirm a torque specification or toll being used in production.

The "Statics Calculator" allows operators to perform basic SPC, CP and CPK calculations


line
Cable Chart
line

TransducerCable Item #List Price
RTSX-AA072000$195.00
BLRTSX072001$195.00
BMX072002$165.00
SDX072004$195.00
RTSX072005$165.00
ETX072006$195.00

*Contact Customer Service for connecting a SMX to the LTT


line
Accessories
line

  • Universal Charger (100 - 240 VAC)
  • USB Cable
  • Software - Torque Meter Interface Program
  • Software - Torque Meter Bootloader
  • Software - Statics Calculator
  • Protective Cover


line
Related Products
line

RTSX
Rotary Torque Transducer

  • Accuracy +/-.25% of full scale
  • Use with most hand tools, power tools or rotational measurement applications
related

line

RTSX-A
Rotary Torque and Angle Transducer

  • Accuracy .25% of full scale
  • Angle Output: 2 channel quadrature, 360 pulses per rotation
related

line

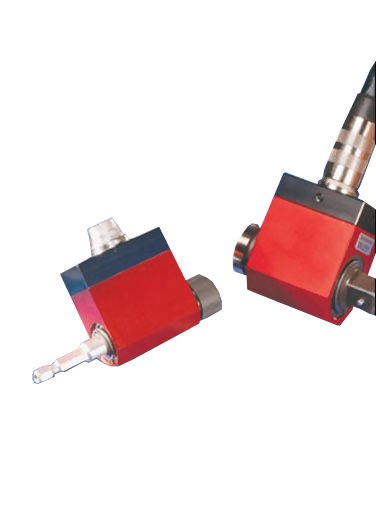

BLRTSX
Brushless Rotary Torque Transducer

  • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer
related

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Mountz LTT-10i Torque and Angle Analyzer, 1-10 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068400 $3,175.00
Accessories Price
Mountz 072506 Battery Pack $135.00
Mountz 770319 USB Cable $25.00
Mountz 770301 Universal Charger $89.00
