Shimpo FGS-50S Manual Lever Test Stand, 50lb Capacity
$853.00
Loading...
Loading product info...
Product Description

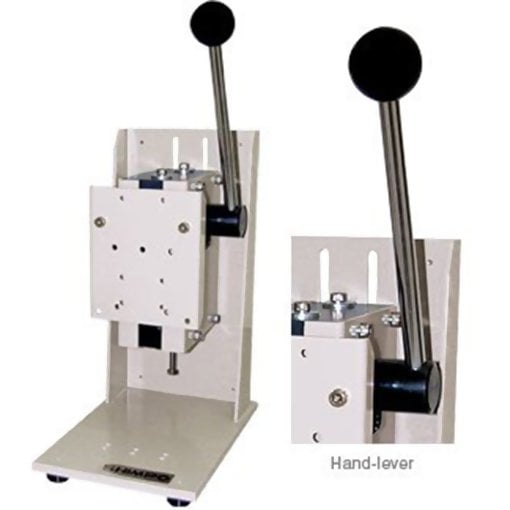

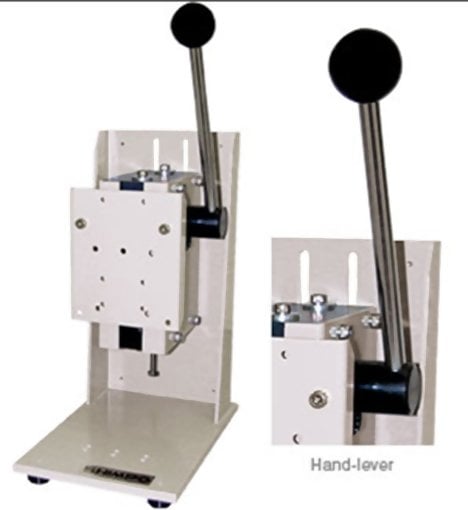

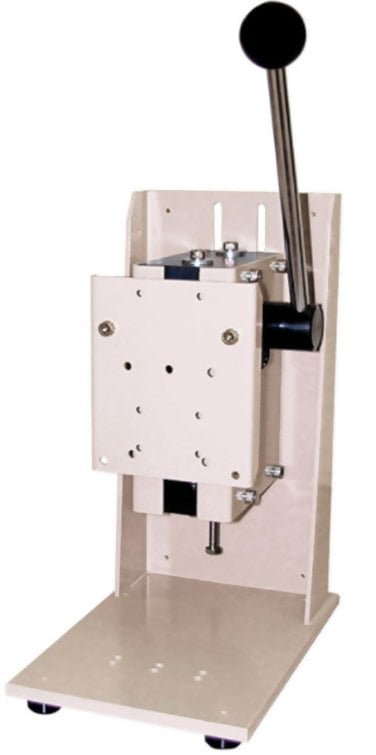

Shimpo FGS-50S Manual Lever Test Stand
Force Gauge sold Separately
50lb Capacity
2" Maximum Travel
Force Gauge sold Separately
50lb Capacity
2" Maximum Travel
Capacity: 50 lbs (22 kg)

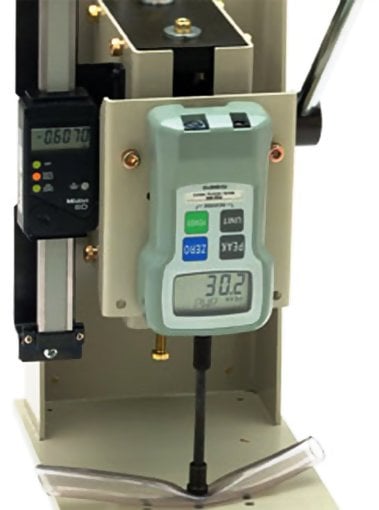

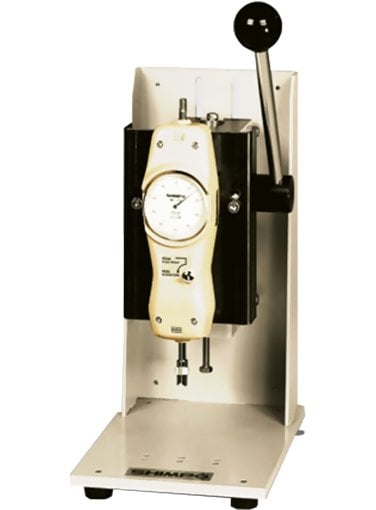

Shown with FGE Series Force GaugeFeatures
- Manual lever operation for compression (push) measurements
- Adjustable stroke with stop screws: max. 2" (50 mm)
- Large platform base accepts special attachments
- Max. capacity 50 lbs
- Fixed position (clearance)in 3 steps: 40, 70, 100 mm

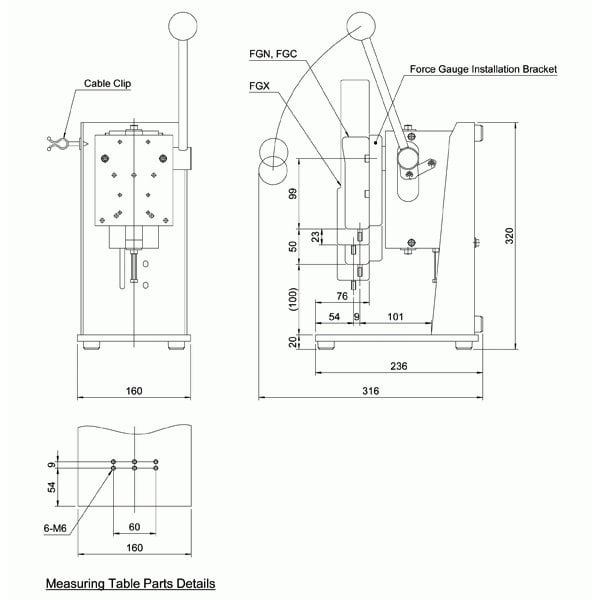

- Dimensions 150 x 240 x 320 mm (L x W x H)
Specifications
| Capacity | max. 200 N (20 kg) |
| Stroke | 2" (50 mm) |
| Dimensions | 150 x 240 x 320 mm (L x W x H) |
| Weight | approx. 25 lbs |
| Compatible Gauges | FGE / FGV |
| Warranty | 1 year |
