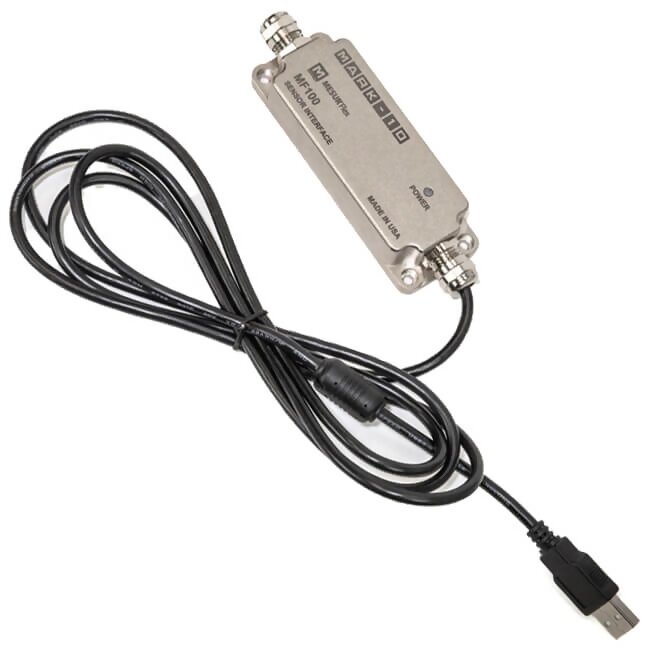

Mark-10 MF100 USB Sensor Interface with MESUR Flex

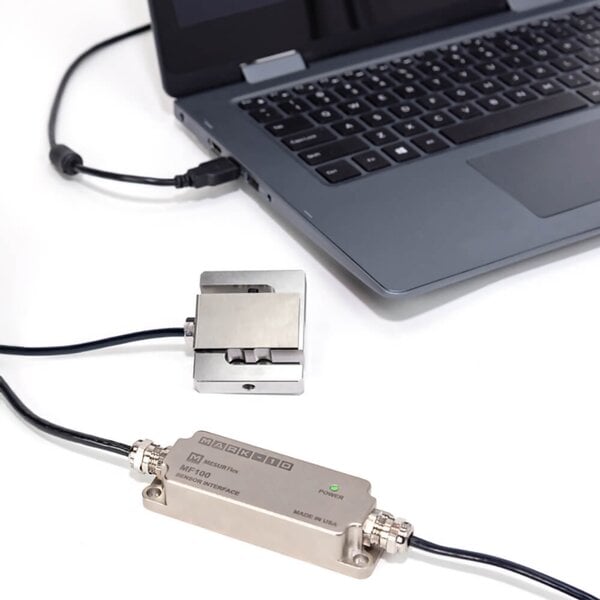

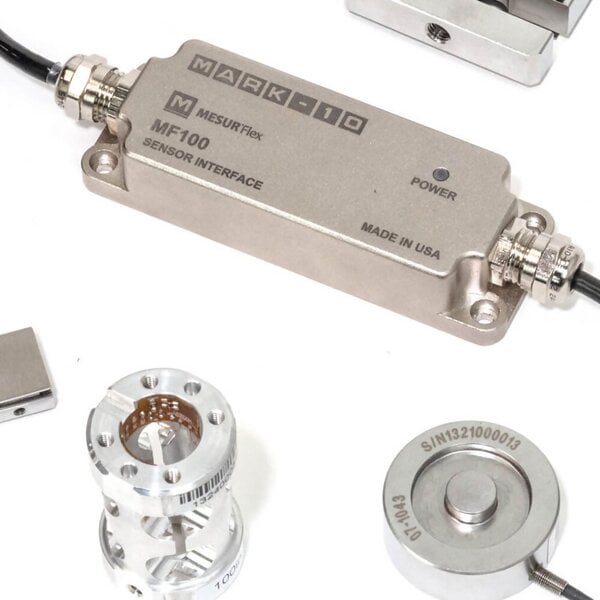

The Mark-10 MF100 USB Sensor Interface connects strain gagebased load cells, force sensors, and torque sensors to a PC or USB hub using the MESURFlex configuration software. MESURFlex supports a wide range of applications in weighing, force, and torque measurement. It accommodates force sensors from 0.12 to 750,000 lbF (0.5 N to 4,000 kN) and torque sensors from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm).

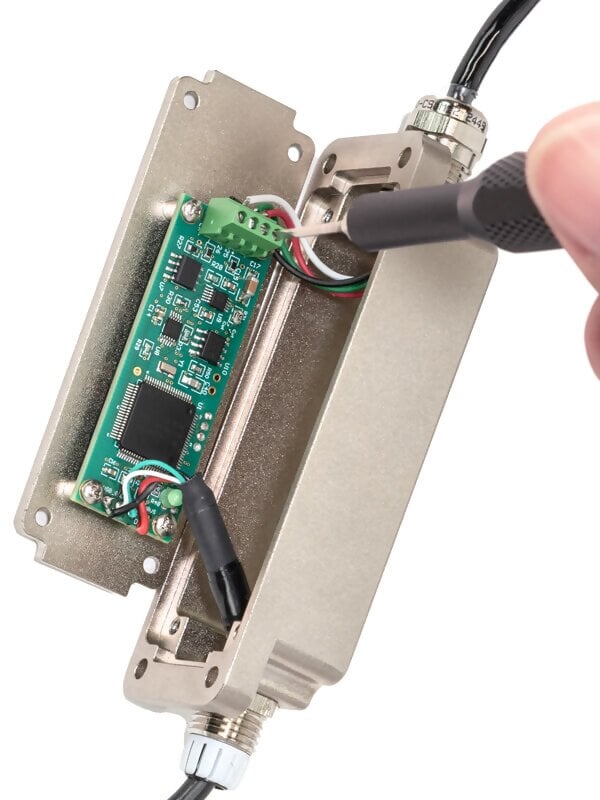

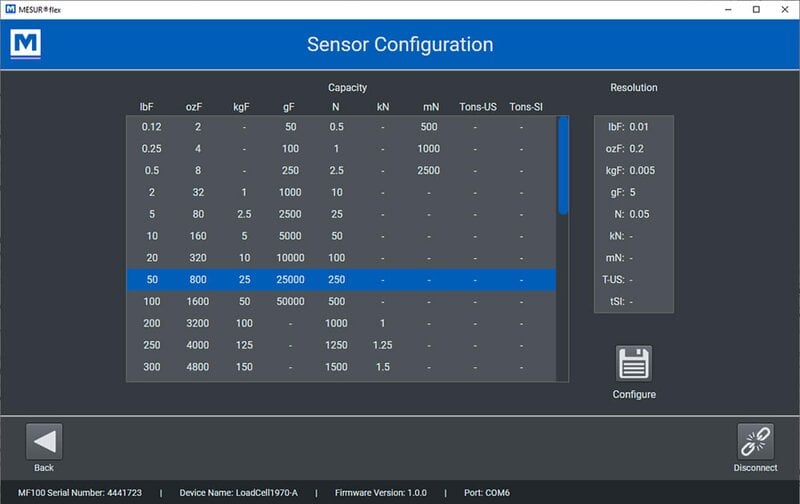

A built-in screw terminal block allows quick, solder-free connection of sensor wires to the interface. Through MESURFlex, select the sensor's capacity, add a unique identifier, and calibrate the sensor through a step-by-step wizard. The software contains basic settings for changing measurement units, viewing peak, real-time, and time-averaged data. Or, control the sensor and acquire data via an extensive library of serial commands, ideal for integration into a data collection system.

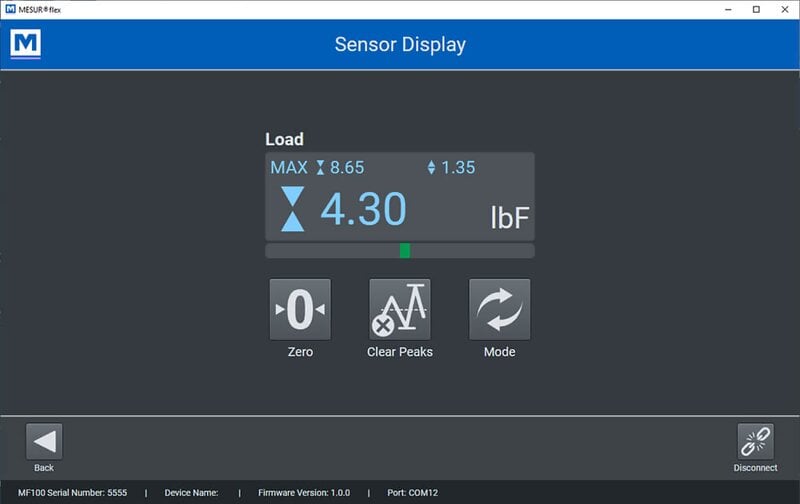

Use the intuitive MESURFlex wizard to set sensor capacity, assign unique identifiers, and complete step-by-step calibrations. The software provides instant access to peak, real-time, and time-averaged data with customizable measurement units. For advanced users, an extensive library of serial commands allows for seamless integration into your existing data collection systems.

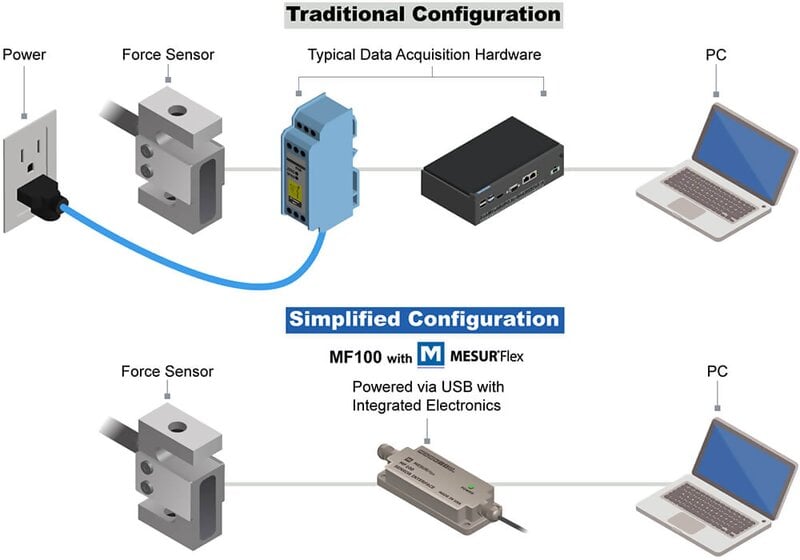

Simplified Interface to a PC
