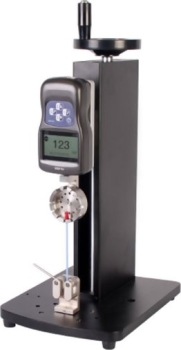

Mark-10 WTT-1000-CG 1000Lb Capacity Pull Test System with Stand, Gauge, Wedge grip and Cam Grip
Similar Products to Consider
Supplied with Heavy-Duty Wedge Grips
The Mark-10 WTT-1000 system is designed for testing large diameter wires for UL and MIL Spec Testing.
Available with a set of heavy-duty self-tightening wedge grips or a combination of wedge grip and vise grip to securely hold your samples. A hook is also included which can be used to grip ring terminals.
Measurement accuracy is 0.1% of full scale, and resolution is 0.5 lbs / 0.2 Kg / 2 N. A large, backlit LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges' many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
Kit Contents
The WTT-1000-CG is sold as a complete test system that includes the following items;
- Mark-10 TSF - High Capacity Test Stand
- Mark-10 M5-1000 - Digital Force Gauge
- Mark-10 G1061-2 - Wedge Grip
- Mark-10 G1094 - Wire Cam Grip
- Mark-10 AC1047-1 - Base Eye-End
- Mark-10 SP-2735-12 - 12inch Column Extension
The WTT-1000-WG is sold as a complete test system that includes the following items;
- Mark-10 TSF - High Capacity Test Stand
- Mark-10 M5-1000 - Digital Force Gauge
- Mark-10 G1061-2 - Wedge Grip (x2)
Features
- Includes NIST Traceable Calibration Certificate
- 3 Year Warranty
- Test for UL 486 & Mil Spec and other standards
- Display force values in peak or real-time measuring mode
- Modular system can be used for many other tension and compression testing applications
- USB, RS-232, Mitutoyo, and analog output
- Peak readings and set points always displayed
- 13 inches of clearance without grips. 4 inches of travel
Specifications
| Capacity | 1,000lbs (4.5Kn) |
| Stroke | 4.00" (102 mm) |
| Travel Rate | 0.013" (0.34 mm)/wheel rev |
| Sampling Rate | 7,000 Hz |
| Accuracy | 1lbs / 0.5 Kg / 5 N |
| Power | AC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage. |
| Battery Life | Backlight on:up to 7 hours of continuous use Backlight off:up to 24 hours of continuous use |
| Measurement Units | lbF,ozF,gF,kgF,N,kN,mN (depending on model) |
| Outputs | USB / RS-232:Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic):Serial BCD suitable for all Mitutoyo SPC-compatibile devices. Analog:1V DC, 0.25% of full scale at capacity. General Purpose:Three open drain outputs, one input. Set Points:Three open drain lines. |
| Configurable settings | Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration |
| Safe Overload | 150% of full scale (display shows "OVLD" at 110% and above) |
| Warrany | 3 years |
Related Products
WTT Manual Wire Terminal Pull Tester
- system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm.
Mark-10 G1093 High Capacity Wire Terminal Grip
- Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.46 in. (11.8 mm). The wheel is machineable for larger samples.
Mark-10 G1094 Eccentric Roller Grip
- The Mark-10 G1094 Eccentric Roller Grip features a serrated cam, for effectively securing wires, plastics, textiles, and other materials in pull testing applications.
Mark-10 G1061 Self-Tightening Wedge Grip
- Ideal for a range of tensile testing requirements. The serrated steel jaws are easily opened with an ergonomic spring loaded knob and rack and pinion type mechanism.
Downloads
 | Mark-10 TSF High Capacity Manual Test Stand - Data Sheet |
| Mark-10 TSF High Capacity Manual Test Stand - Instruction Manual |
| Mark-10 Series 5 Advanced Digital Force Gage - Data Sheet |
| Mark-10 Series 5 Advanced Digital Force Gage - Instruction Manual |
